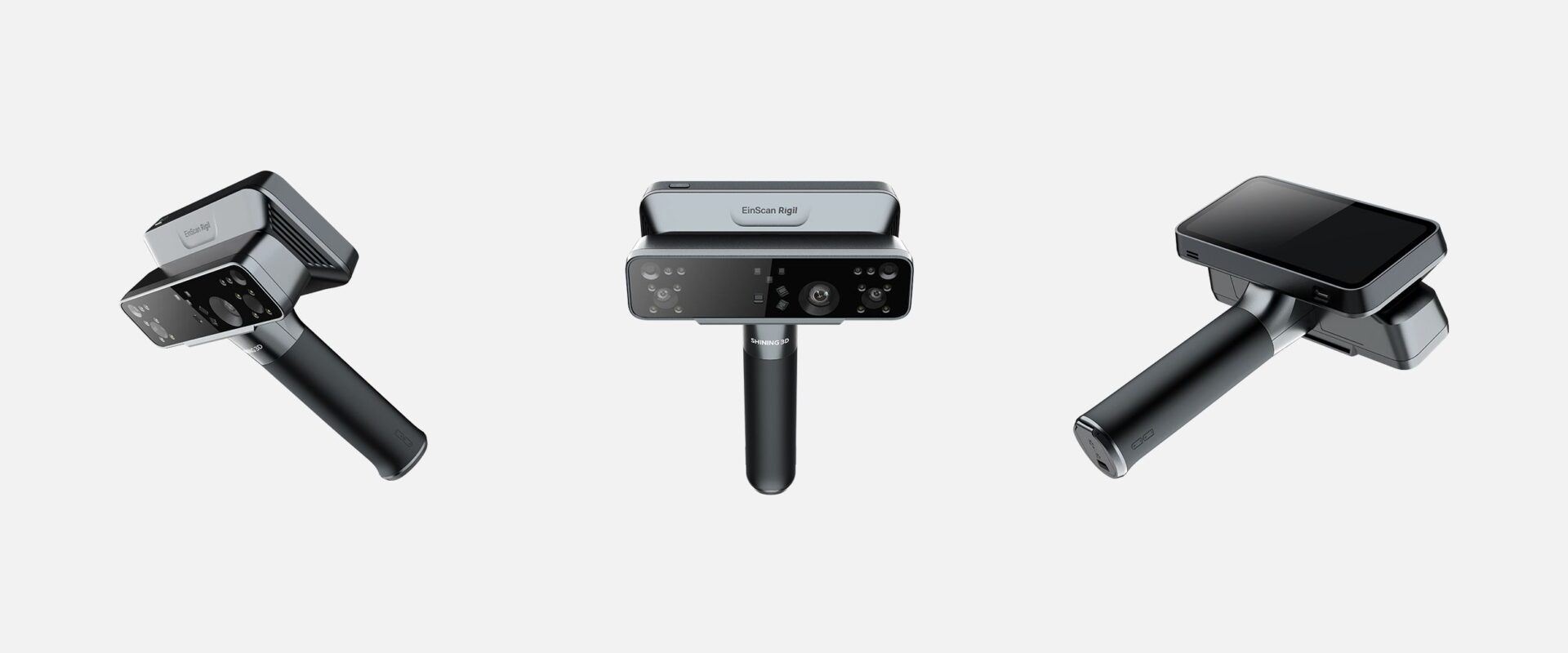

EinScan Rigil

A tri-mode 3D scanner with built-in computing, wireless operation and hybrid light technology, designed for prosumers, engineers, automotive teams and educators who need flexible, high-accuracy scanning without a fixed workstation.

Price: £5,758.80 Inc VAT / £4,799.00 Exc VAT

The EinScan Rigil combines three scanning modes, wireless connectivity and on-device computing to deliver a fast, portable and fully integrated 3D capture workflow. Its hybrid light system, which includes 19+19 crossed blue laser lines, 7 parallel blue laser lines and VCSEL infrared, works with two dedicated camera groups to maintain high performance across a wide range of object sizes, surface types and lighting conditions. With 0.04 + 0.06 mm/m volumetric accuracy and up to 0.05 mm resolution, the Rigil excels in automotive, engineering, product design and education environments, providing reliable detail in both indoor and outdoor conditions.

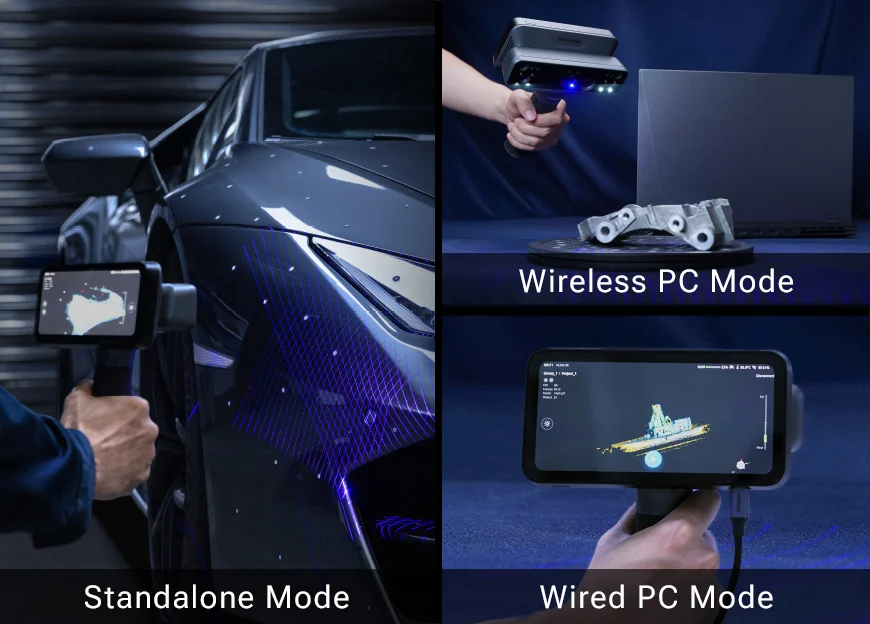

The EinScan Rigil shown in Standalone, Wireless PC and Wired PC scanning modes.

Triple Work Modes

The Rigil gives you three ways to work. Standalone Mode lets you scan and process directly on the device. Wireless PC Mode uses Wi-Fi 6 to connect to a computer for more power when you need it. Wired PC Mode delivers maximum speed and stability for demanding, high-volume projects.

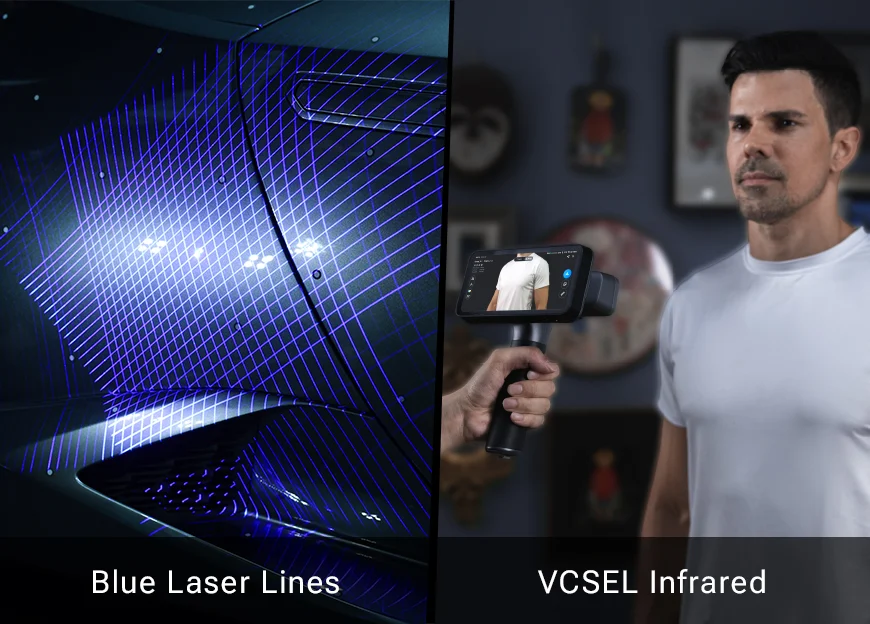

Blue laser lines projected on a car panel and the EinScan Rigil scanning a person with VCSEL infrared.

Hybrid Light Source

Two dedicated camera groups capture two types of light: blue laser lines and VCSEL infrared. This combination gives you strong performance across different materials and environments, from fine details to challenging surfaces.

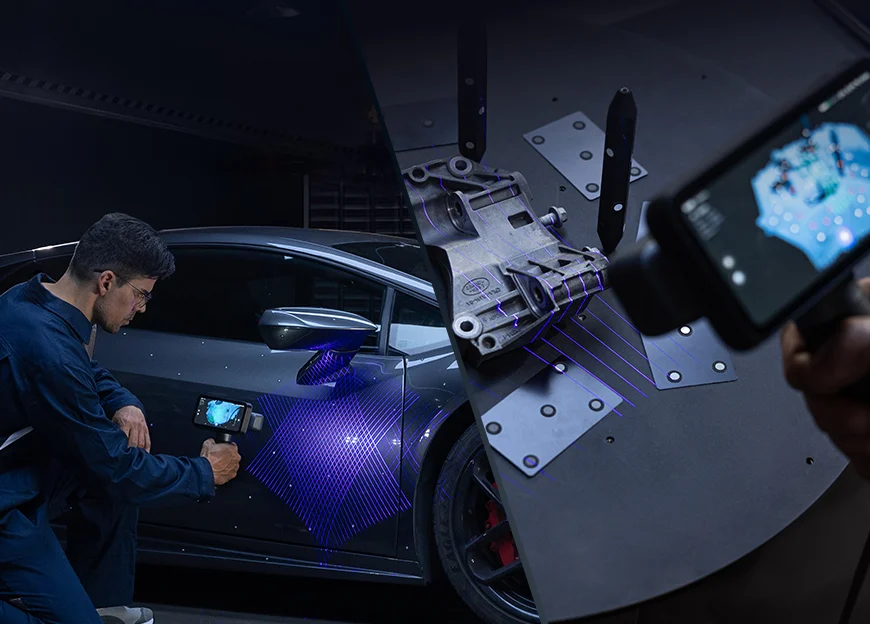

A technician scanning a car and a metal part with the EinScan Rigil using blue laser lines.

Laser HD Mode

Laser HD Mode captures high-quality models with 0.04 + 0.06 mm/m volumetric accuracy and up to 0.05 mm resolution. It uses 19+19 crossed laser lines for fast scanning and 7 parallel blue laser lines for fine-detail work.

Dynamic Laser Switching

Switch between blue laser modes during a scan and merge the data into one project. This gives you both speed and detail without restarting your workflow.

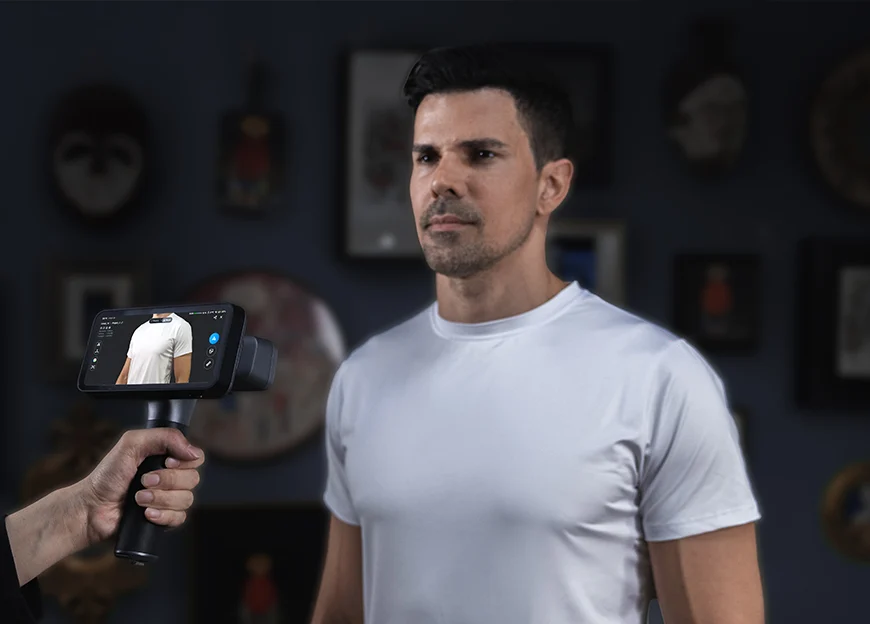

A person holding an EinScan Rigil scanner while digitising the upper body of a man standing still for an infrared scan.

IR Rapid Mode

IR Rapid Mode uses VCSEL infrared to capture medium to large objects quickly and accurately. It works at distances from 160 to 1500 mm and captures up to 1.6 million points per second with volumetric accuracy up to 0.1 + 0.3 mm/m.

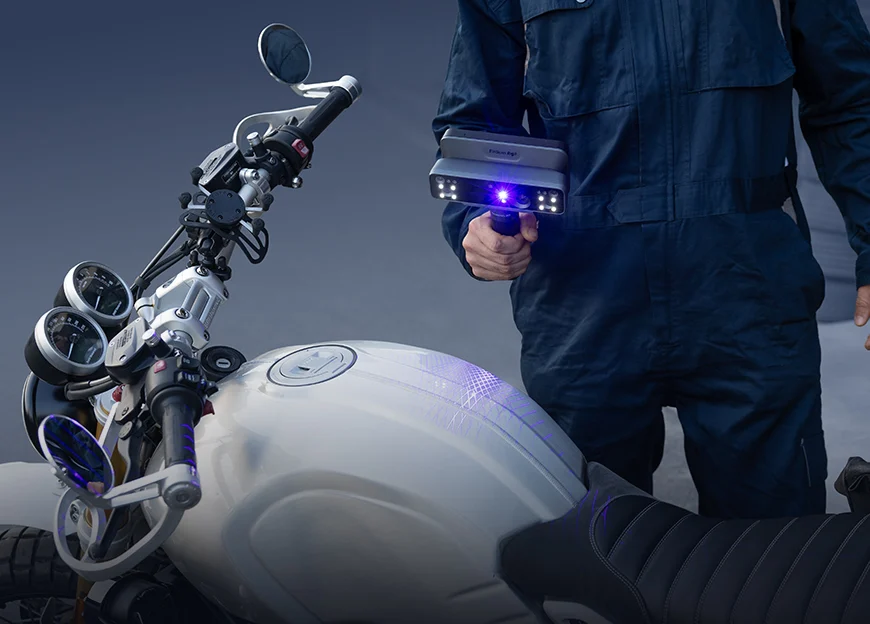

A technician scanning the fuel tank and handlebars of a motorcycle using the EinScan Rigil, with blue laser lines visible on the surface.

Marker-Free Laser Scanning

A specialised tracking algorithm lets the Rigil perform blue laser scanning without markers. The Laser plus IR hybrid mode provides better efficiency than marker-based workflows and produces higher-quality data than marker-free IR scanning alone.

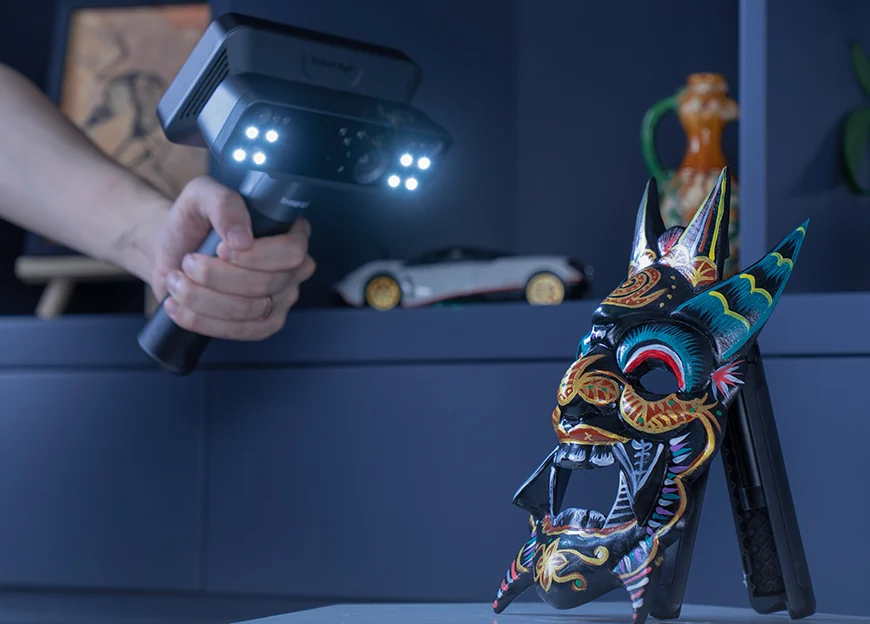

An EinScan Rigil scanner capturing a colourful decorative mask on a tabletop, with the scanner’s lights illuminating the object.

Full Color Texture Scanning

A built-in 5MP camera captures high-fidelity textures, helping designers, engineers and artists maintain accurate colours and surface details throughout the digitisation process.

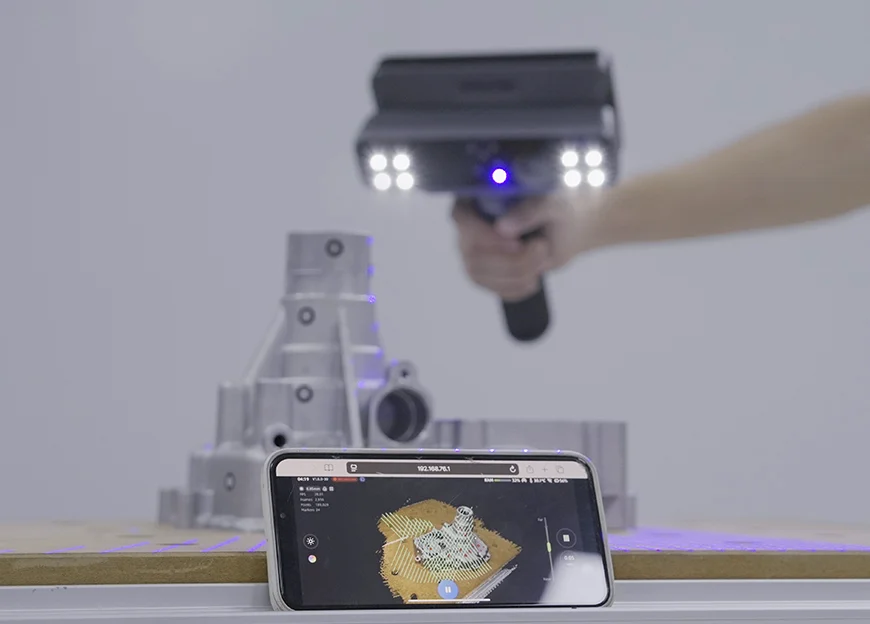

The EinScan Rigil scanning a metal mechanical part, while a mobile device on the table shows a live preview of the 3D scan.

Wireless Workflow

Scan without a PC, share data directly to the Shining3D Cloud and cast your screen to a second display. The wireless workflow makes it easy to collaborate and move freely.

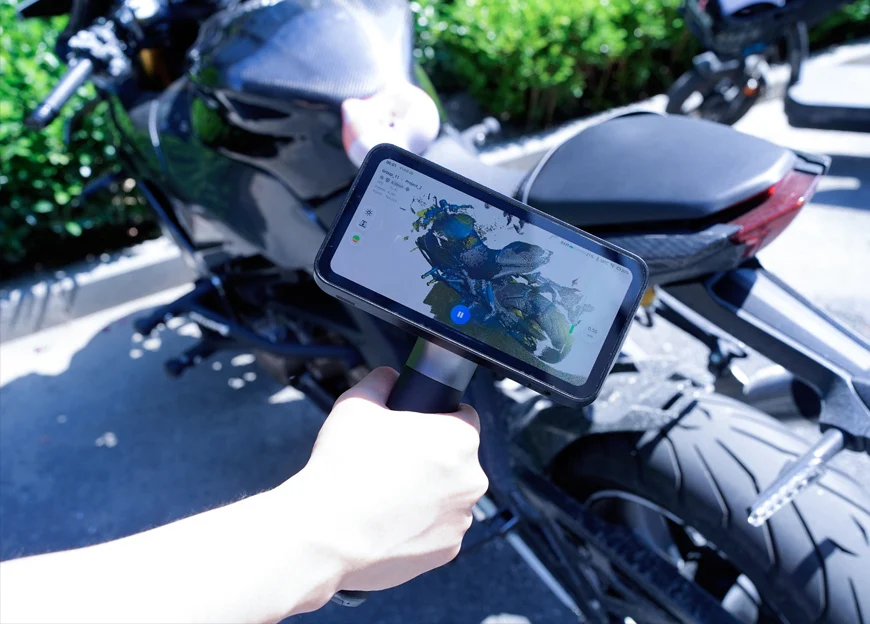

A person holding an EinScan Rigil scanner outdoors while capturing a 3D scan of a motorcycle, with the live scan preview displayed on the device’s screen.

Outdoor Scanning

The hybrid light system performs well in strong sunlight and adapts to dark or reflective metal surfaces without spray. This makes the Rigil suitable for workshops, studios and outdoor sites.

See the EinScan Rigil in Action and Explore Its Capabilities

Overview

A short overview of the EinScan Rigil, highlighting its tri-mode operation, hybrid light technology, and key features. See how it combines flexibility and precision in a compact design.

Standalone Mode

A step-by-step walkthrough of powering on the EinScan Rigil and performing your first scans without a PC—showing just how fast and seamless standalone scanning can be.

Wireless/Wired Mode

A practical guide to setting up the EinScan Rigil in PC-connected modes, demonstrating both wireless (via Wi-Fi 6) and wired workflows for seamless, high-performance scanning.

Frequently Asked Questions

The EinScan Rigil offers a flexible tri-mode workflow, fast capture and reliable accuracy. Its built-in computing, wireless connectivity and hybrid light system allow you to work efficiently in different environments without relying on a fixed workstation.

The Rigil is ideal for automotive and mechanical engineers, product designers, educators and digital artists who need a portable scanner that performs well on a wide range of object types and surfaces.

Yes. The crossed and parallel blue laser lines can be switched while scanning, and their data can be merged to achieve both speed and fine detail within the same project.

The scanner handles car panels, mechanical parts, textured objects and even human subjects. It performs well on dark and reflective materials and can operate outdoors in strong sunlight.

The device is powered by 2 x 6000mAh replaceable batteries, which can be quickly replaced (but currently does not support hot swapping). It also supports USB Type-C power supply while charging and using simultaneously.

Yes. Standalone Mode allows all scanning and processing to take place directly on the device. Wireless PC Mode and Wired PC Mode are available when you need additional computing power or maximum stability.
